THE MAGNUM DIFFERENCE

Innovative design, advanced engineering and superior materials make Magnum™ garage door rollers the only choice to compliment your high quality door system. These functionally superb rollers are stronger, quieter, maintenance-free and have a higher cycle life than other garage door rollers on the market.

Magnum™ garage door rollers are designed to withstand the harshest of conditions you can come up with. Sealed precision ball bearing construction provides excellent load rating and bearing seals prevent problem elements and contamination from entering and damaging the raceways. Ultra-high molecular weight polyethylene tire is super quiet and stainless steel stem and collar construction ensures rust-free durability and high-strength in any situation. Special snap-lock design now makes snap-ring failure a thing of the past.

Specify the original Magnum™ rollers for any high use, dirty, wet and/or quiet area or choose the new Magnum™ SP Supreme for extreme durability in the worst wet and corrosive applications.

magnum garage door rollers logo

DEPENDABLE, QUIET AND TOUGH!

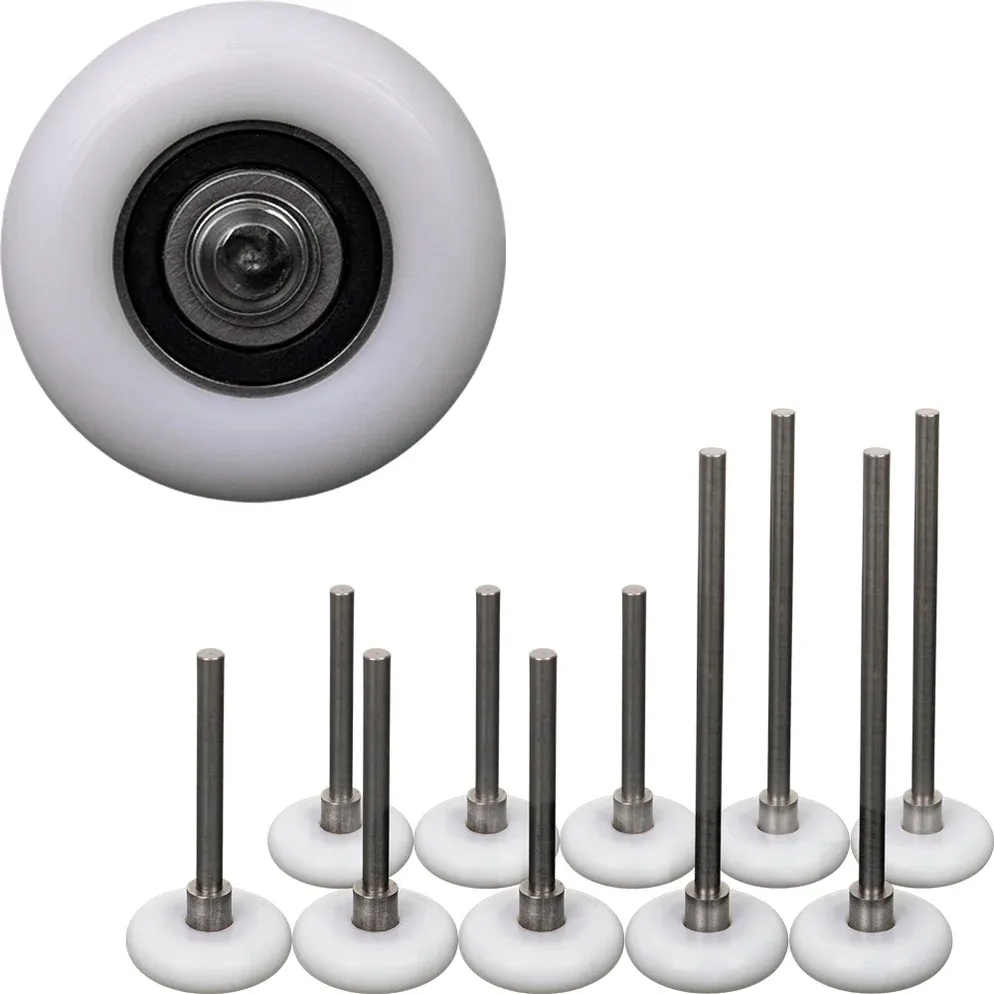

Magnum Garage Door Rollers have become a standard and a favorite throughout the garage door as well as the car and truck wash industries. Sealed bearing design, UHMW tire and stainless steel stem and collar makes the Magnum garage door roller a stronger, quieter and more maintenance-free product that handles significantly higher cycles than other rollers in the market.

Ideal for any high cycle, high moisture environment.

mangnum rollers
magnumsupremelogo

THE BEST JUST GOT BETTER!

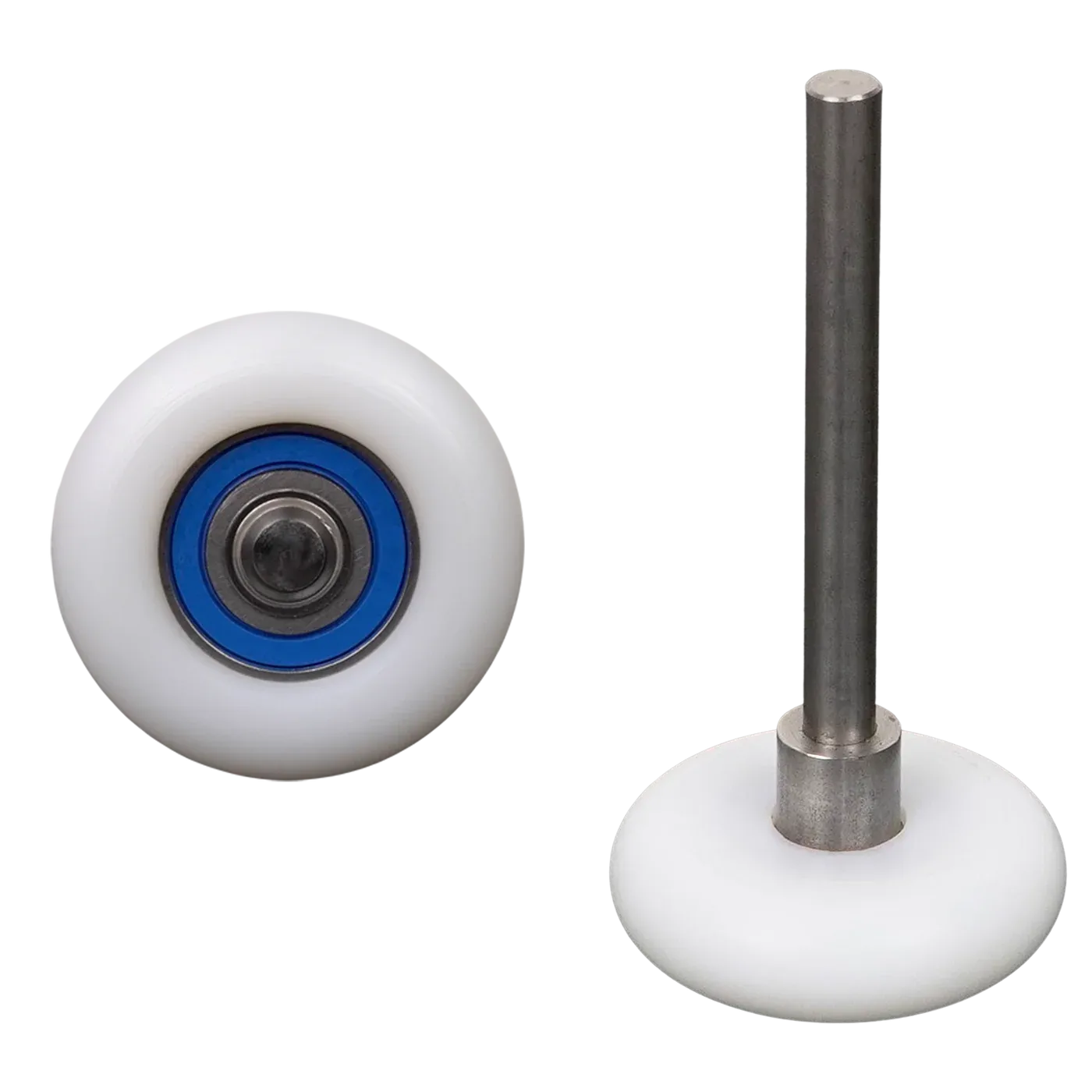

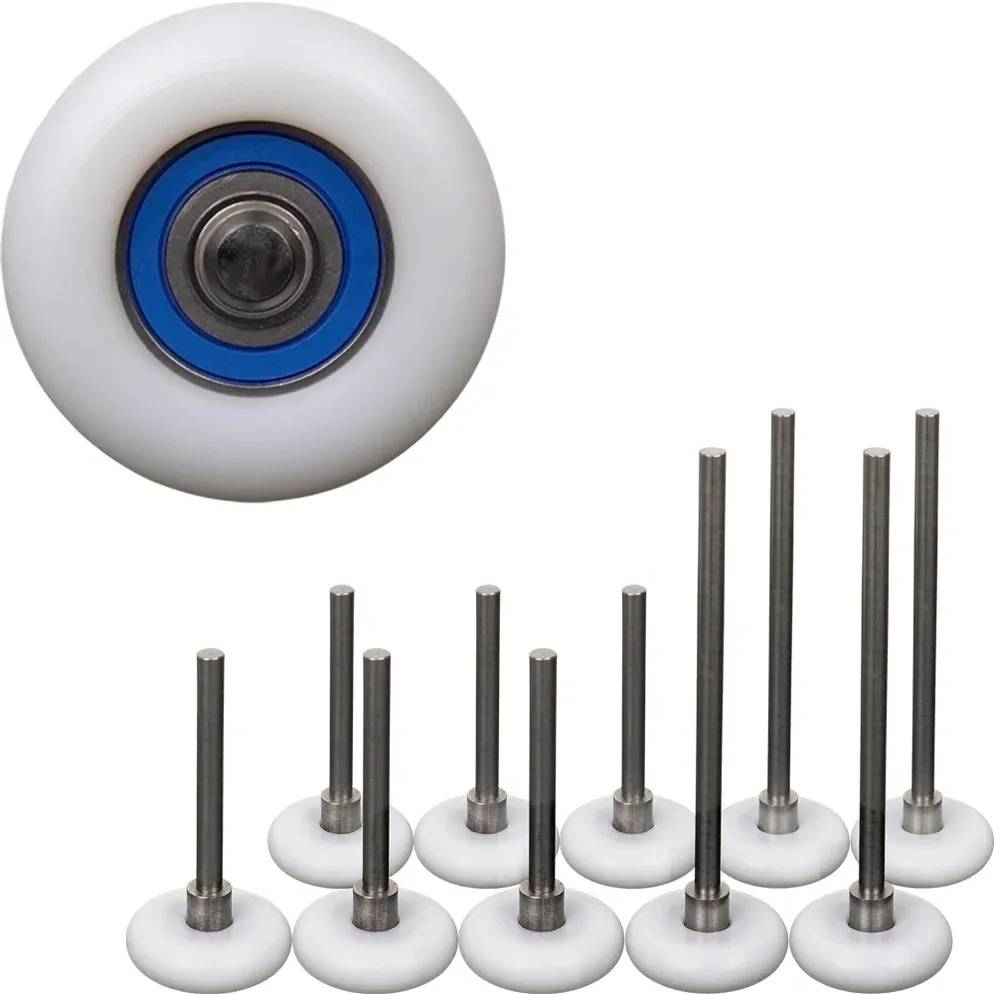

With the same great benefits as the Original Magnum garage door roller, Supreme Magnum rollers include a sealed, stainless steel bearing for maximum durability and better reliability in those extra corrosive and wet areas. The bearing includes high-quality 300 series stainless bearing balls and raceways for less possibility of internal corrosion.

Designed Specifically for Extra Wet & Corrosive Areas

magnum garage door rollers
magnum garage door rollers logo

Double-Sealed Precision Bearing
Keeps lubrication in and damaging elements out.Bearing has higher-load rating than other rollers for longer service life on heavier doors. Factory pre-lubed with high moisture lubricant.

Plated Bearing Balls
Corrosion resistant for great performance in punishing environments.

Plated Raceways
Corrosion resistant for wet environments for longer life.

High Density Polyethylene Tire
Wear resistant U.H.M.W tire equates to smooth, ultra-quiet operation and zero rust. Available in 2” or 3”diameter.

Shielded Tire
Tire acts as a shield to deflect moisture and damaging elements from the bearing. Now with snap-lock design.

304 Stainless Steel Stem
7/16” Diameter stem has high load rating and is rust-free for a longer service life. Available in 5” & 8-1/2” lengths.

Stainless Steel Collar
Tough stainless collar for rust-free durability in harsh conditions. Keeps door spaced from the track to prevent door jarring.

download

Brochure

PDF Document

download

Catalog

PDF Document

mangnum garage door rollers

NEED HELP CHOOSING THE RIGHT GARAGE DOOR ROLLERS FOR YOUR PROJECT? GIVE US A CALL TODAY AT 800-233-1487

magnumsupremelogo

Double-Sealed Precision Bearing
Keeps lubrication in and damaging elements out. Bearing has higher-load rating than other rollers for longer servicelife on heavier doors. Factory pre-lubed with high moisture lubricant.

Stainless Steel Bearing Balls
For complete rust-free operation in the most punishing high moisture environments.

Stainless Steel Raceways
Stainless Steel raceways are completely rust-free for years of service in the toughest environments.

High Density Polyethylene
Tire Wear resistant U.H.M.W tire equates to smooth, ultra-quiet operation and zero rust. Available in 3” diameter only.

Shielded Tire
Tire acts as a shield to deflect moisture and damaging elements from the bearing. Now with snap-lock design.

304 Stainless Steel Stem
7/16” Diameter stem has high load rating and is rust-free for alonger service life. Available in 5”& 8-1/2” lengths.

Stainless Steel Collar
Tough, stainless collar for rust-free durability in harsh conditions. Keeps door spaced from the track to prevent door jarring.

download

Brochure

PDF Document

download

Catalog

PDF Document

Bearingless Roller Logo
bearingless garage door rollers
download

Brochure

PDF Document

download

Catalog

PDF Document

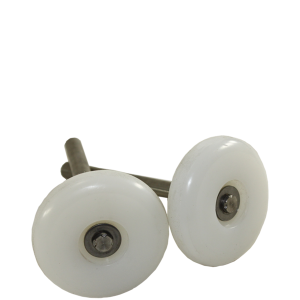

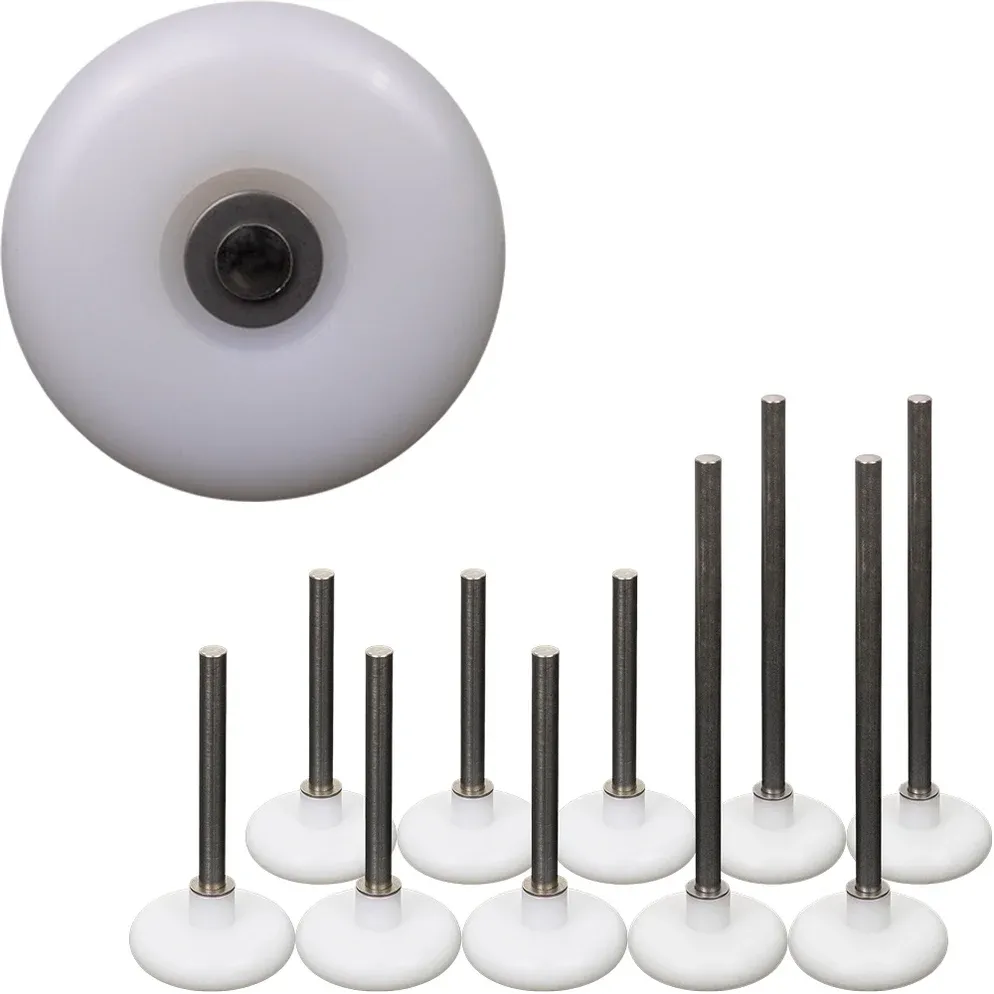

Constructed from some of the most rust-resistant materials in the industry, our Bearingless Rollers are ideal for wet, corrosive or otherwise abusive applications that require more durability and reliability than what standard commercial garage door rollers offer.

Application specific and field proven design ensures a smoother, quieter and easier-rolling product that delivers better overall performance in these and other types of
tough exposures. Perfect for high-use conditions too.

Bearingless Rollers are ideal for light to medium weight doors in just about any situation. An excellent product to compliment any high-quality polycarbonate or other washbay type garage door package!

Choose our bearingless rollers for wet or corrosive areas such as: car or truck washes, food processing/storage areas, marine environments, waste treatment, shipyards,
and other demanding environments.

  • Economical
  • Stronger
  • Durable & Quiet
  • No Maintenance
  • Rust Resistant
  • Smooth Operation
  • Great Wearability
  • Easy To Install

Featuring

304 Rust Free Stainless Steel Collar

High Density Polyethylene Collar

UMHW High Density Polyethylene Tire

Available with 4-1/4", 4-1/2", 7-1/2"" and 8" Stems

NEED HELP CHOOSING THE RIGHT GARAGE DOOR ROLLER FOR YOUR PROJECT? GIVE US A CALL TODAY AT 800-233-1487
